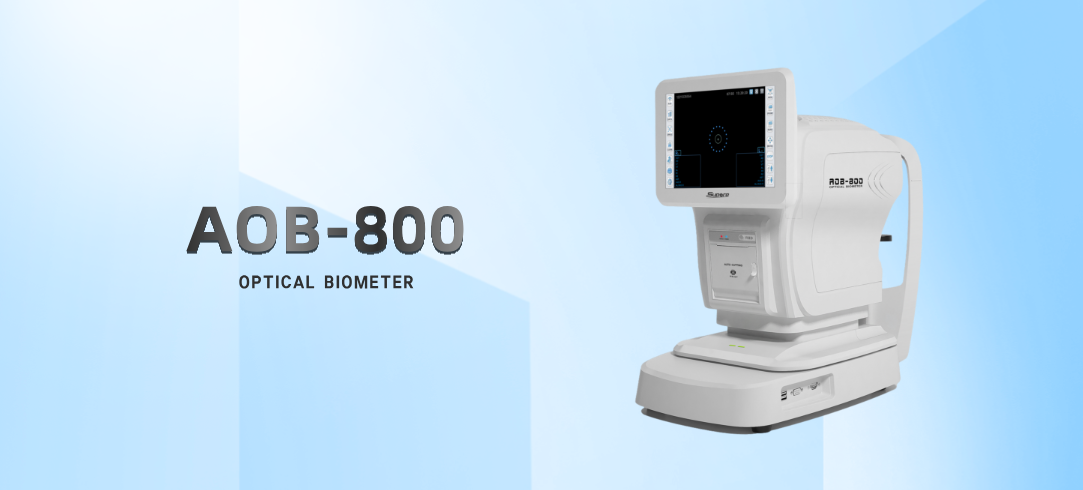

AOB-800


Classification:

Ophthalmic Instruments

Hotline:

AOB-800


AOB-800

Retail Price

Market price


Weight

Quantity
-
+

Inventory

隐藏域元素占位

AOB-800

Classification:

Ophthalmic Instruments

DOWNLOAD Return to List
  • Product Description
  • Technical Parameters
  •





    Microscope



    Microscope Type

    Galitean stereoscopic microscope

    Magnification Selection

    5 steps by drum rotation

    Eyepiece

    12.5X

    Magnification Ratio (Field of View)

    6X(33mm),10x(22.5mm),16x(14mm),

    25x(8.8mm),40x(5.5mm)

    Pupillary Adjustment

    50mm~82mm

    Diopter Adjustment

    ±7D



    Base

    Side Shift

    110mm

    Depth Shift

    90mm

    Height Shift

    30mm



    Chin Rest

    Height Shift

    80mm

    Fixation Target

    Red LED

    Illumination system

    Slit Width

    0~14mm Continuous(at 14mm,slit becomes a circle)

    Slit Height

    1~14mm Continuous

    Slit Angle

    0°~180°adjustable

    Slit Inclination

    5°,10°,15°,20°

    Diameter of Light Spot

    ∮14mm, ∮10mm, ∮5mm, ∮3mm, ∮2mm ∮1mm, ∮0.2mm and 1~14mm continuous

    Filter

    Heat Absorption, Grey, Red-Free,

    Cobalt Blue

    Illumination Bulb

    12v 50w halogen lamp

    Power

    Input Voltage

    110v/220v AC

    Frequency

    50/60Hz

    Power Consumption

    68VA

    Weight and Size

    Gross Weight

    18kg

    Dimension

    690mm(L)x440mm(W)x 420mm(H)
